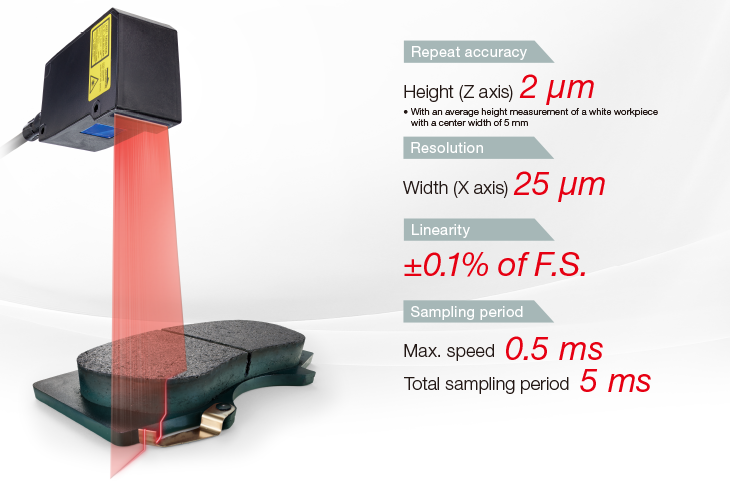

FASTUS LS Series 2D Laser Displacement Sensors

The 2D laser displacement sensor of the FASTUS LS Series have created an entirely new category in profile measurement.

This all-in-one 2D laser scanner achieves the high-speed and high-accuracy measurements that 1D sensors just can’t do, at the more affordable cost than the conventional 2D sensors or 3D cameras.

Expertly designed for use on any type of manufacturing line to perform the shape measurements required for quality management of parts and materials.

High speed, compact size and low price are achieved using Optex-FA original method

Employing a mathematical operation known as a projection transformation, which converts a captured image into distance, allows both height and width to be measured with a high degree of precision. Also, by employing Optex-FA original method in which projection transformations, normally performed on all pixels in the case of competitors’ products, are performed after triangulation, processing levels are significantly compressed, allowing high speed to be achieved. Furthermore, a more compact and low cost product has been realized by making processors smaller size.
