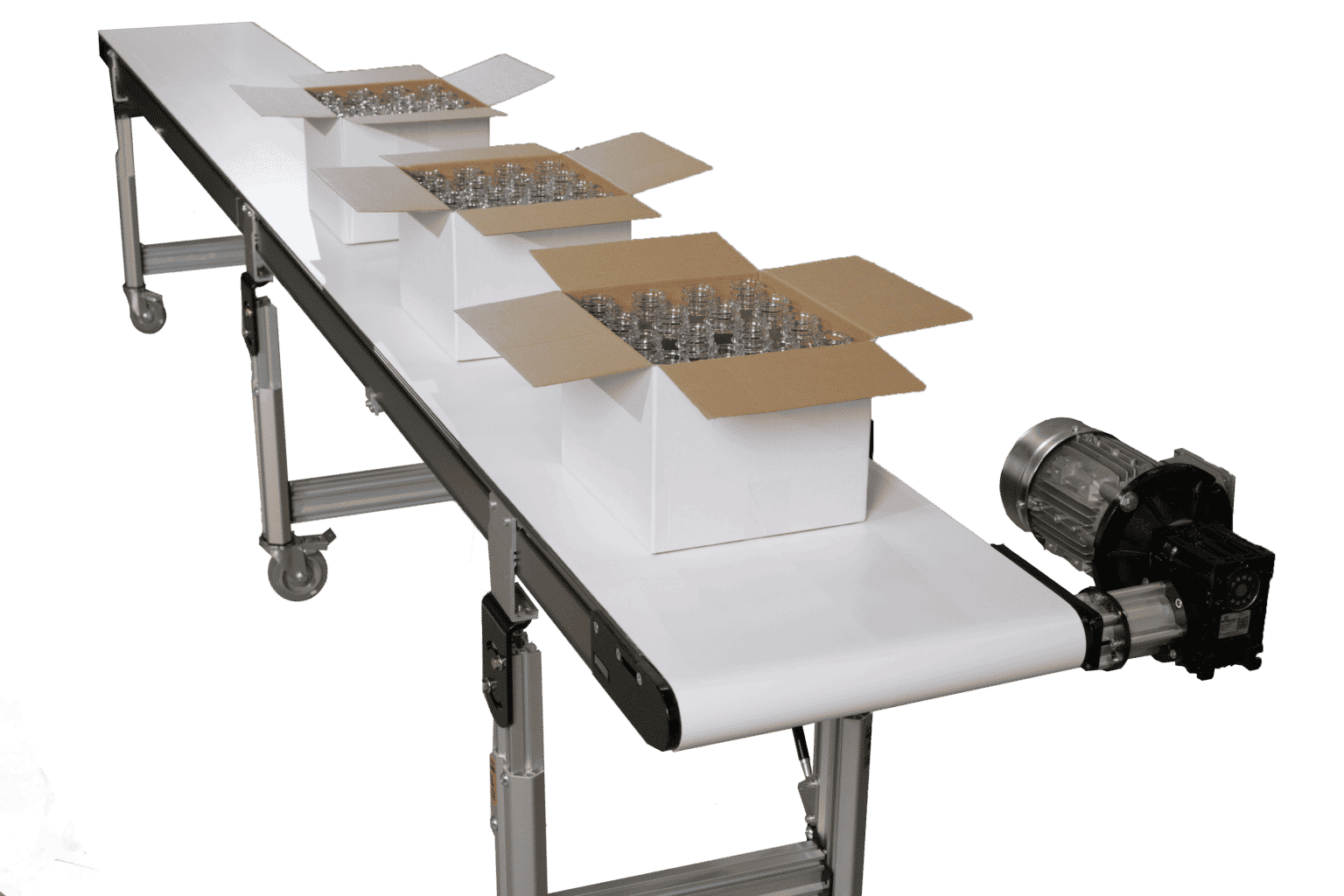

Medium Duty Conveyor
Featuring an increased maximum width and a heavier payload capacity, the 2700 Series Medium Duty conveyor is designed for material handling, eCommerce, and logistics applications. The low-profile aluminum frame design allows this conveyor to fit into smaller spaces while providing the strength needed to convey heavier product up to 150 lbs.
The 2700 conveyor includes v-guiding and precision belt tracking to eliminate belt sway, even with the conveyor is wider than it is long. The increased width and flush mounting also make this conveyor an ideal choice for AGV/AMR applications.
Additional Benefits:
- Width increase from 24″ to 36″ available in 2″ increments
- Same stands, conveyor guiding, and components as regular 2200
- Similar mount packages as regular 2200
- Integrated motor inside conveyor creates clean sides and maximizes belt coverage
Specifications:
- Widths from 10in-36in in 2 inch increments
- Lengths from 2ft-18ft
- 2.4in roller diameters with 5/8in nose bar option to handle smaller packages
- Loads up to 150 lbs
- Speeds up to 400ft/min
