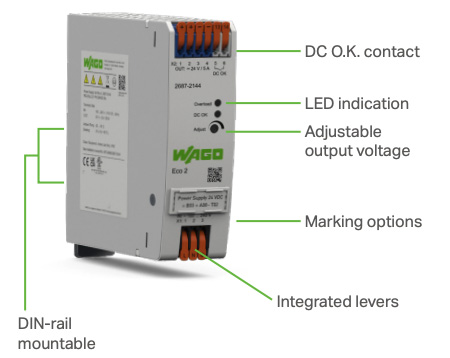

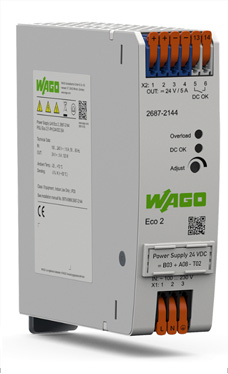

The Eco 2 Power Supply family is expanding with the addition of the 2687-2144 Eco 2. The 100 VAC … 240 VAC, 50/60 Hz, 1-Phase input, 24 VDC, 5 A, 120 W output supply is ideal for many repeatable applications. At just 38 mm wide, the slim-style power supplies maximize space in your control cabinet. Pushin CAGE CLAMP® technology with integrated levers allow for tool-free installation. This new device is also extremely reliable and reduces energy costs with a high efficiency rating of up to 90%. Convenient marking options, LED indications, DC O.K. contacts, and adjustable output voltage make this power supply an excellent choice for many OEM applications.

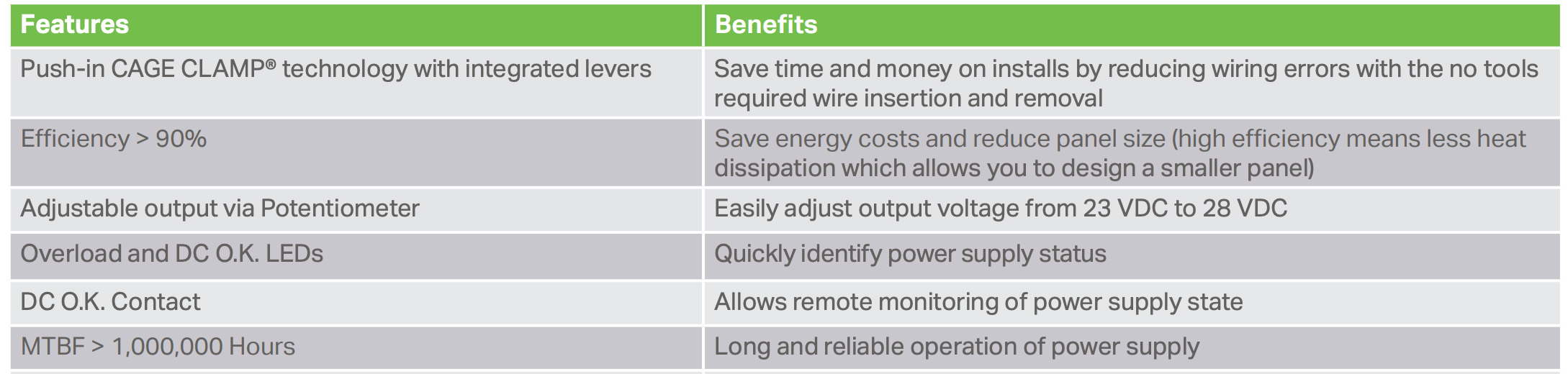

Other features include:
- Wide operating temperature range of -25 ° C … +70 ° C
- MTBF of >1,000,000 hrs
- OVC III (2000m), OVC II (5000m); suitable for use in high altitudes
- Approvals in accordance with UL 6010-2-201 and UL 121201
